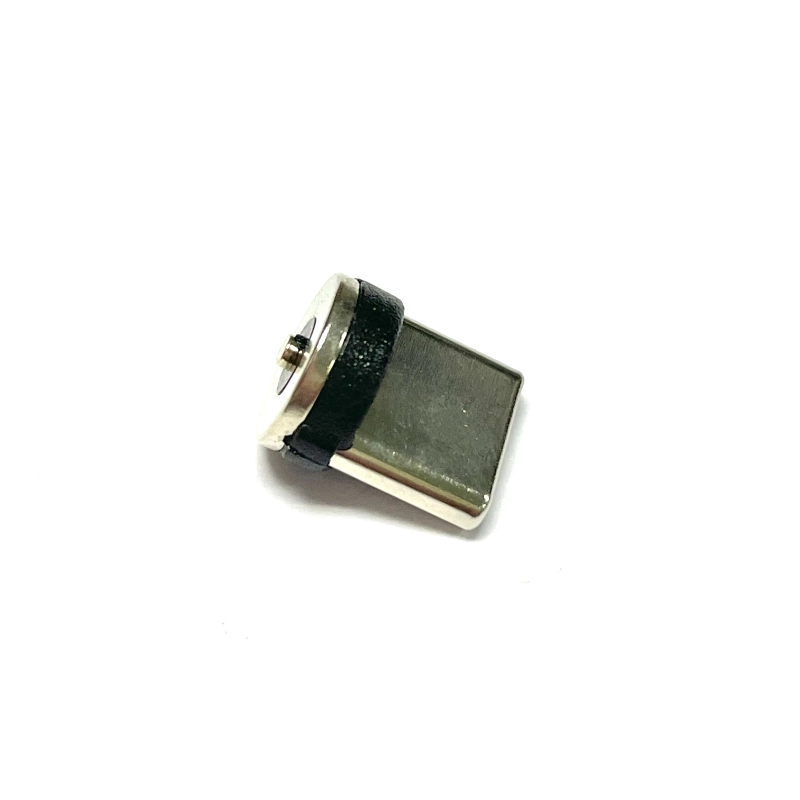

magnetic connector type-c
Magnetic Type-C plug adapter, enabling a quick-release magnetic connection to protect charging ports from wear and tear.
Category Overview
Advanced Plating & Material Features
- Ultra-Miniature 4mm Design:
Specifically developed for next-generation micro-electronics, offering a minimal footprint for the most space-constrained designs. - High-Performance Pogo Pin Technology:
Features precision-engineered, gold-plated spring pins that ensure reliable electrical conductivity and consistent contact force. - Strong Magnetic Self-Alignment:
Despite its tiny 4mm size, the integrated high-grade magnets provide a powerful self-centering force for easy and secure "blind mating." - Dust & Water Resistance:
The low-profile circular design is easy to clean and can be integrated into enclosures to provide basic dust and moisture protection for internal components. - Exceptional Durability:
Built to withstand over 10,000 mating cycles, ensuring long-term reliability for consumer and industrial port applications.
Technical Specifications
- Component Type: Circular Magnetic Pogo Pin Connector (Base/Socket)
- Contact Material: Precision Gold-plated Copper Alloy (Spring-loaded)
- Housing Material: High-Temperature Resistant Engineering Plastic/ Nickel-plated Metal
- Magnet Type: High-Grade N52 Neodymium Magnets
- Function: DC Power Charging & Stable Data/ Signal Transmission
- Operating Voltage/ Current: Customizable (Standard 1A-2A support)
Target Applications
- Smart Wearables: Ideal for Smart Rings, high-end fitness trackers, and smart eyewear.
- Medical Devices: Miniature diagnostic sensors, hearing aids, and portable medical probes.
- IoT & Specialized Gadgets: Micro-sensors, hidden electronic locks, and smart tags.
- Compact Consumer Electronics: E-cigarettes, stylus pens, and wireless earbud charging cases.
OEM/ODM Services
AsiaLink provides professional electronic component manufacturing services. We can customize magnetic force or dimensions based on your mechanical requirements.
Please send us your inquiries with 2D drawings (dwg/dxf), 3D files (igs/stp), or PDF specifications.
