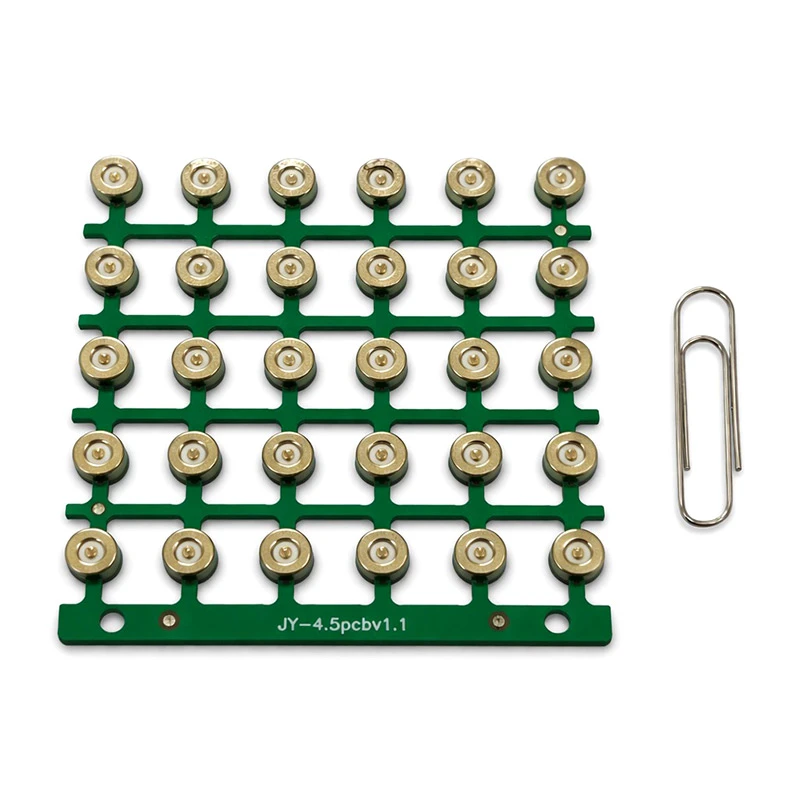

4mm Micro Magnetic Pogo Pin Connector (Circular Charging Port)

Advanced Plating & Material Features

• Ultra-Miniature 4mm Design:
  Specifically developed for next-generation micro-electronics, offering a minimal footprint for the most space-constrained designs.
• High-Performance Pogo Pin Technology:
  Features precision-engineered, gold-plated spring pins that ensure reliable electrical conductivity and consistent contact force.
• Strong Magnetic Self-Alignment:
  Despite its tiny 4mm size, the integrated high-grade magnets provide a powerful self-centering force for easy and secure "blind mating."
• Dust & Water Resistance:
  The low-profile circular design is easy to clean and can be integrated into enclosures to provide basic dust and moisture protection for internal components.
• Exceptional Durability:
  Built to withstand over 10,000 mating cycles, ensuring long-term reliability for consumer and industrial port applications.

Technical Specifications

• Component Type: Circular Magnetic Pogo Pin Connector (Base/Socket)
• Contact Material: Precision Gold-plated Copper Alloy (Spring-loaded)
• Housing Material: High-Temperature Resistant Engineering Plastic/ Nickel-plated Metal
• Magnet Type: High-Grade N52 Neodymium Magnets
• Function: DC Power Charging & Stable Data/ Signal Transmission
• Operating Voltage/ Current: Customizable (Standard 1A-2A support)

Target Applications

• Smart Wearables: Ideal for Smart Rings, high-end fitness trackers, and smart eyewear.
• Medical Devices: Miniature diagnostic sensors, hearing aids, and portable medical probes.
• IoT & Specialized Gadgets: Micro-sensors, hidden electronic locks, and smart tags.
• Compact Consumer Electronics: E-cigarettes, stylus pens, and wireless earbud charging cases.

OEM/ODM Services

AsiaLink provides professional electronic component manufacturing services. We can customize magnetic force or dimensions based on your mechanical requirements.
Please send us your inquiries with 2D drawings (dwg/dxf), 3D files (igs/stp), or PDF specifications.
