Asialink International Technology Corp.

circular magnetic base pcb data charging

Asialink International Technology Corp. has consistently maintained ours leading position in the Taiwan market with standard and special circular magnetic base pcb data charging. Owing to the stringent quality policy, our circular magnetic base pcb data charging meets the exact requirements of varied clients. We are one of the leading suppliers and exporters of optimum quality . Also, our circular magnetic base pcb data charging is illustrious in the market for its perfect designing, flawless performance, cost-effectiveness, and other such features.
Categories > Connectors
circular magnetic base pcb data charging
I'm interested

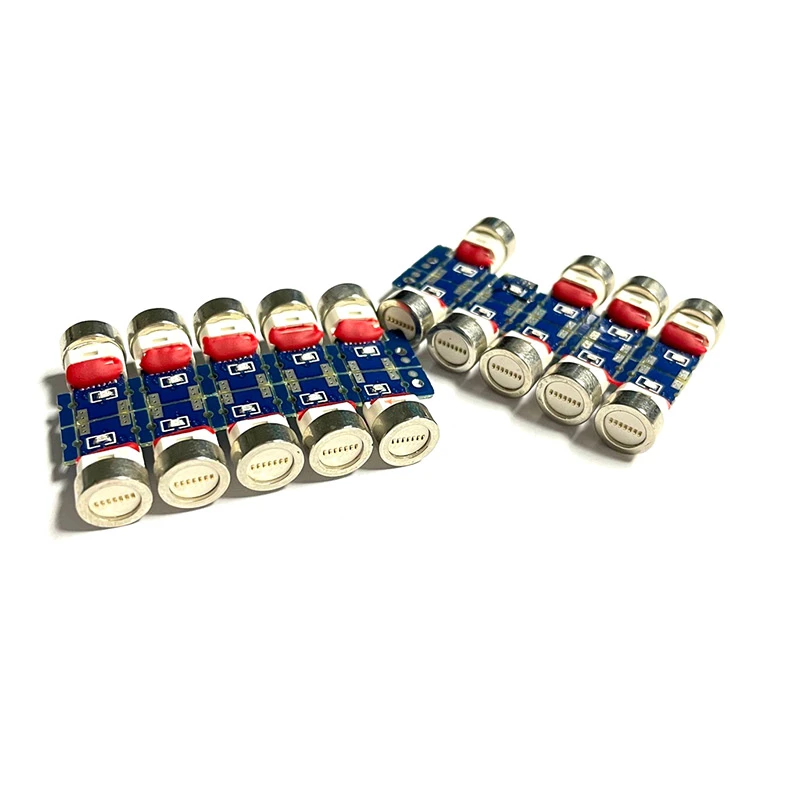

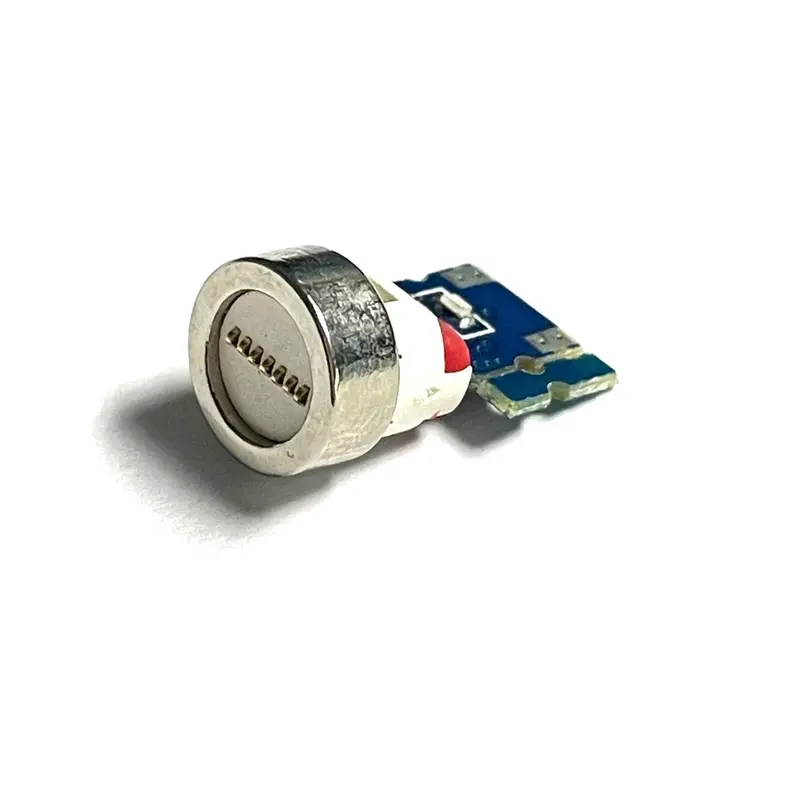

circular magnetic base pcb data charging
Specialized PCB-mount circular magnetic interface, designed for low-profile integration in modern smart devices and docking stations.
Category Overview :

Advanced Plating & Material Features

  • Ultra-Miniature 4mm Design:
    Specifically developed for next-generation micro-electronics, offering a minimal footprint for the most space-constrained designs.
  • High-Performance Pogo Pin Technology:
    Features precision-engineered, gold-plated spring pins that ensure reliable electrical conductivity and consistent contact force.
  • Strong Magnetic Self-Alignment:
    Despite its tiny 4mm size, the integrated high-grade magnets provide a powerful self-centering force for easy and secure "blind mating."
  • Dust & Water Resistance:
    The low-profile circular design is easy to clean and can be integrated into enclosures to provide basic dust and moisture protection for internal components.
  • Exceptional Durability:
    Built to withstand over 10,000 mating cycles, ensuring long-term reliability for consumer and industrial port applications.

Technical Specifications

  • Component Type: Circular Magnetic Pogo Pin Connector (Base/Socket)
  • Contact Material: Precision Gold-plated Copper Alloy (Spring-loaded)
  • Housing Material: High-Temperature Resistant Engineering Plastic/ Nickel-plated Metal
  • Magnet Type: High-Grade N52 Neodymium Magnets
  • Function: DC Power Charging & Stable Data/ Signal Transmission
  • Operating Voltage/ Current: Customizable (Standard 1A-2A support)

Target Applications

  • Smart Wearables: Ideal for Smart Rings, high-end fitness trackers, and smart eyewear.
  • Medical Devices: Miniature diagnostic sensors, hearing aids, and portable medical probes.
  • IoT & Specialized Gadgets: Micro-sensors, hidden electronic locks, and smart tags.
  • Compact Consumer Electronics: E-cigarettes, stylus pens, and wireless earbud charging cases.

OEM/ODM Services

AsiaLink provides professional electronic component manufacturing services. We can customize magnetic force or dimensions based on your mechanical requirements.
Please send us your inquiries with 2D drawings (dwg/dxf), 3D files (igs/stp), or PDF specifications.

Contact:

Send Message
Contact Information

By submitting your contact information, you acknowledge that you consent to our processing data in accordance with the Privacy and Cookie Policy.

Asialink International Technology Corp. is a professional manufacturer specializes in manufacturing circular magnetic base pcb data charging. In order to achieve quality management and the quality assurance requirements, we especially make the quality manual to ensure that the products are produced in accordance to meet customer requirements. Moreover, we continually develop the innovative circular magnetic base pcb data charging to meet the various market demands and bring multiple benefits to customers always. Please feel free to leave us a message if you have any questions. We will reply to you as soon as possible and offer you our best services.
