CF 50 Card Frame Kit, 50 way PCB connector, complete kit to assemble CF

Asialink International Technology Corp. strives to research and develop quality, energy-efficient CF 50 Card Frame Kit, 50 way PCB connector, complete kit to assemble CF to benefit the electronic supplies consumers. As a leading supplier of CF 50 Card Frame Kit, 50 way PCB connector, complete kit to assemble CF, we provide professional . Asialink International Technology Corp.'s team is second to none. Our knowledge, energy, and passion ensure you achieve the best possible outcome for your customers. Contact the Asialink International Technology Corp. Support Team directly, in case you have questions about CF 50 Card Frame Kit, 50 way PCB connector, complete kit to assemble CF. They will provide specific advice in choosing the system that meets the technical specifications and approvals to give the most cost-effective solution for you.
Categories > Connectors
CF 50 Card Frame Kit, 50 way PCB connector, complete kit to assemble CF
I'm interested

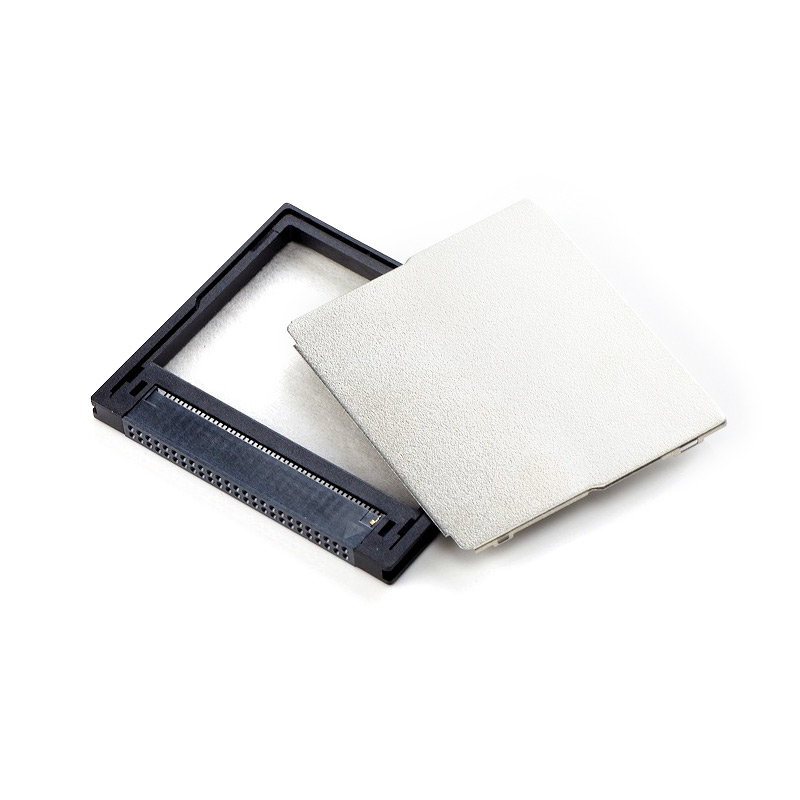

A comprehensive CompactFlash (CF) 50-pin card frame kit, including a precision PCB connector for secure card integration.
Category Overview :

AsiaLink provides premium interconnect solutions with a focus on high-reliability Terminal Plating technology. Our connectors are engineered to provide superior electrical conductivity and exceptional corrosion resistance, making them ideal for telecommunications, industrial control, and automotive electronics.

Advanced Plating & Material Features

  • Precision Terminal Plating:
    We offer high-performance surface treatments, including Full Gold Plating, Selective Gold Plating (Flash to 30u"), and Tin Plating to meet specific application requirements for conductivity and cost-effectiveness.
  • Multi-Layer Underplating:
    All terminals feature a high-quality Nickel underplate to prevent base metal migration and enhance the durability of the final gold or tin finish.
  • Superior Contact Reliability:
    Engineered to minimize contact resistance and prevent oxidation, ensuring stable signal and power transmission even in humid or harsh environments.
  • High-Temperature Housing:
    Utilizing UL 94 V-0 rated thermoplastics (LCP/ PBT/ Nylon) that withstand high-heat reflow soldering without deforming.
  • Robust Solderability:
    Our plating processes are optimized for excellent solder wetting, reducing defect rates during SMT or wave soldering production.

General Technical Specifications

  • Terminal Base Material: Copper Alloy (Brass/ Phosphor Bronze)
  • Plating Options:
    • Mating Area: Gold Plating (u" thickness customizable)
    • Solder Tail: Matte Tin or Gold Flash
    • Underplate: Nickel overall (50u" - 100u")
  • Current Rating: 0A – 5.0A
  • Contact Resistance: 20 mΩ – 40 mΩ
  • Insulation Resistance: 1,000M Omega
  • Durability: 5,000 to 10,000+ Mating Cycles (depending on plating thickness)

Target Applications

  • Industrial: PLC controllers, sensors, and robotics.
  • Telecom: High-speed routers, switches, and telecom jacks.
  • Consumer: Handheld devices, wearables, and smart home appliances.
  • Automotive: Diagnostic interfaces and infotainment systems.
